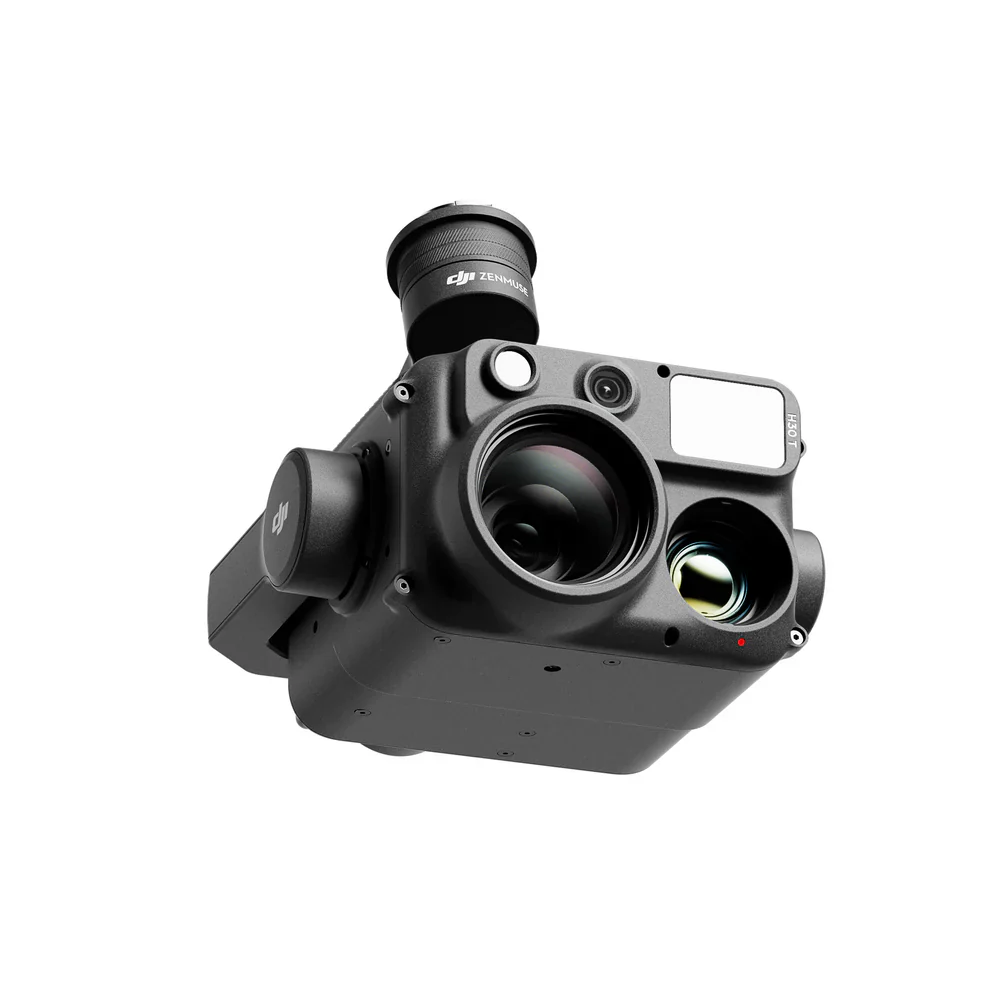

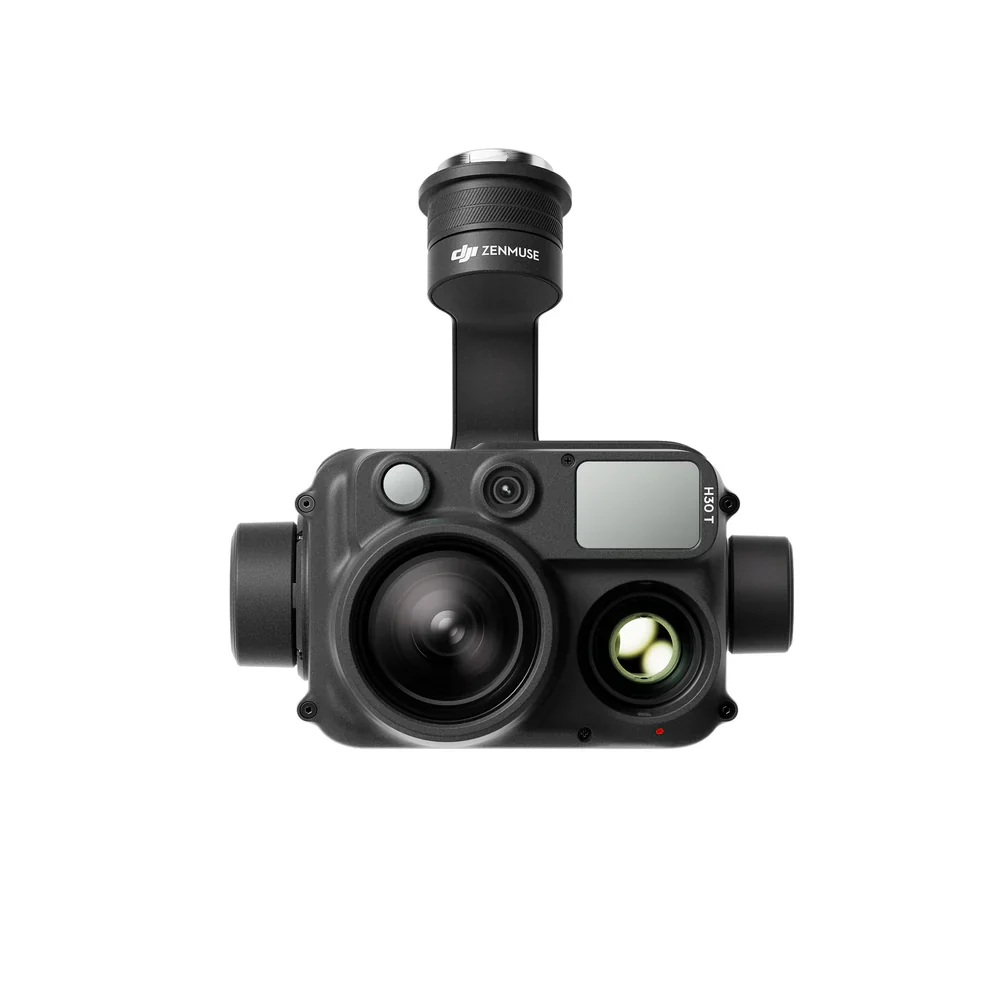

The all-weather, multi-sensor flagship Zenmuse H30T Five-Sensor Camera integrates five major modules—a wide-angle camera, a zoom camera, an infrared thermal camera, a laser rangefinder, and an NIR auxiliary light. Employing cutting-edge intelligent algorithms, it revolutionizes perception and imaging standards, transcending the limitations of day and night vision. This makes it effortlessly suitable for a variety of operations including public safety, energy inspection, water conservation, and forestry.

All-Weather, Full-Day and Multi-Sensor Flagship Payload

Wide Camera: 48 MP 1/1.3" CMOS (24mm Focal Length)
Zoom Camera: 40 MP 1/1.8" CMOS (34x Optical Zoom, 400x max digital zoom)
Laser RangeFinder: 3 km (~9842 ft) Range
Radiometric Thermal Camera: 1280x1024 (52mm Focal Length)
NIR Auxiliary Light: Provides better auxiliary illumination for zoom camera

The Zenmuse H30T empowers operators with high-magnification zoom once a target is recognized using the wide camera view/sensor. The laser rangefinder provides distance and location information of a subject which can be mission-critical information in many applications such as search and rescue, inspection, and more.

Laser ranging can measure the distance of objects within the measurement range (up to 3 km), and displays the distance from the aircraft, relative height, and GPS position of the measured object.

Accurate temperature management functionality on the H30T is made available by its radiometric thermal imaging capabilities. This functionality enables operators to take real-time precise temperature readings and monitor temperatures of subjects on a job site or critical infrastructure assets. Spot Metering and Area Measurement features allow you to tap a subject point on the screen and receive an instant surface temperature reading, while Area Measurement requires that you select an area (by drawing a subject box on the screen) and the lowest, highest, and average temperature of the area will be displayed.

Thermal images captured using the Zenmuse H30T are saved in R-JPEG format which embeds the image's temperature data and information. Using the DJI Thermal Analysis Tool you can measure and evaluate temperatures when preparing reports, or adjust imaging parameters such as Emissivity and Reflected Temp.

Superior Zoom Performance

34x max. optical zoom
400x max. digital zoom
Optimized stabilization in telephoto video
Maintained clarity during zooming
Faster focusing speed

Additional Features of the Zenmuse H30T

IP54 Rating
-20°C to 50°C (-4°F to 122°F) operating temperature
Active image stabilization and EIS
Night scene mode
Temp Alarm
Isotherms
Color Palettes
Gain Modes
R-JPEG Images

Zenmuse H30T Intelligent Camera Functions

Click to Aim: No more having to waste time trying to use your gimbal yaw and tilt controls, simply double-click on the point of interest and your camera/gimbal will automatically move to the point of interest.

Smart Track: Identify and follow moving subjects like people, vehicles, and boats with the auto-zoom function, while continuously acquiring the subject’s dynamic location.

High-Res Grid Photo: This function allows you to take an overview photo using the wide camera sensor, and using the zoom camera, a set of 40 MP images will be captured of the grid area. This allows you to efficiently be able to observe a subject and easily be able to view the subject in greater detail.

Night Scene: This function provides great vision benefits in low-light environments with enhanced noise reduction and IR light options.

Specs

Zenmuse H30T Specs

General

Weight	960±5g
Dimensions	180×140×165 mm
Ingress Protection (IP) Rating	IP54
Operating Temperature	20℃ ~ 50℃ (-68°F to 122°F)
Storage Temperature	-30°C to 60°C (-22°F to 140°F)
Laser Safety	Class 1M
Compatibility	Matrice 300 RTK (only with DJI RC Plus), Matrice 350 RTK

Gimbal

Angular Vibration Range	±0.01°
Mount	Detachable
Controllable Range	Tilt: -120° to +30° Pan: ±320°

Zoom Camera

Sensor	1/1.8" CMOS, 40 MP
Lens	DFOV: 66.7°-2.9° Focal length: 7.1-172 mm (effective: 33.4-809.3 mm) Aperture: f/1.6-f/5.2 Focus: 5 m to ∞ (wide)
Focus Mode	Auto/Manual
Exposure Mode	Program AE
Exposure Compensation	±3.0 (1/3 EV step)
Metering Mode	Center-weighted
AE Lock	Supported
Electronic Shutter Speed	1/2000 - 1/30 s
ISO Range	Normal: 100 - 25600 Night Scene Mode: 100 - 819200
Video Resolution	3840x2160@30fps, 1920x1080@30fps
Video Format	MP4
Video Subtitles	Supported
Max Photo Size	7328 x 5496
Photo Format	JPEG

Zoom Camera

Sensor	1/1.8" CMOS, 40 MP
Lens	DFOV: 66.7°-2.9° Focal length: 7.1-172 mm (effective: 33.4-809.3 mm) Aperture: f/1.6-f/5.2 Focus: 5 m to ∞ (wide)
Focus Mode	Auto/Manual
Exposure Mode	Program AE
Exposure Compensation	±3.0 (1/3 EV step)
Metering Mode	Center-weighted
AE Lock	Supported
Electronic Shutter Speed	1/2000 - 1/30 s
ISO Range	Normal: 100 - 25600 Night Scene Mode: 100 - 819200
Video Resolution	3840x2160@30fps, 1920x1080@30fps
Video Format	MP4
Video Subtitles	Supported
Max Photo Size	7328 x 5496
Photo Format	JPEG

Wide Camera

Sensor	1/1.3" CMOS, 48 MP
Lens	DFOV: 82.1° Focal length: 6.72 mm (effective: 24 mm) Aperture: f/1.7 Focus: 1 m to ∞
Exposure Mode	Program AE
Exposure Compensation	±3.0 (1/3 EV step)
Metering Mode	Center-weighted
AE Lock
Shutter Speed	1/2000 - 1/30 s
ISO Range	Normal: 100 - 25600 Night Scene Mode: 100 - 409600
Video Resolution	3840x2160@30fps, 1920x1080@30fps
Video Format	MP4
Video Subtitles
Max Photo Size	8064 x 6048
Photo Format	JPEG

NIR Auxiliary Light

Bandwidth	NIR
Wavelength	850nm
Illumination Range	@100 m: Approx. 8m diameter circle (328 ft, 26 ft)

Thermal Camera

Sensor	Uncooled VOx Microbolometer
Lens	DFOV: 45.2° Focal length: 24 mm (effective: 52 mm) Aperture: f/0.95 Focus: 13 m to ∞
Max Digital Zoom	32x
Video Resolution	1280 x 1024@30fps
Video Format	MP4
Image Resolution	1280 x 1024
Image Format	R-JPEG (16 bit)
Pixel Pitch	12 μm
Spectral Band	8-14 μm
Sensitivity (NETD)	≤50 mK @ f/1.0
Temperature Measurement Method	Center point, spot, and area measurement
Scene Range	High Gain: -20 °C to 150 °C -20 °C to 450 °C (with IR Density Filter) Low Gain: 0 °C to 600 °C 0 °C to 1600 °C (with IR Density Filter)
Temperature Alert	Supported
Measurement Parameter Configuration	Supported
Ultra-HD	Supported
Infrared Super Resolution	Supported
Thermal Palettes	White Hot/Black Hot/Lava/Tint/Iron Red/Rainbow1 /Rainbow 2/Medical/Arctic/Fulgurite

Laser Rangefinder

Wave Length	905 nm
Measurement Range	3-3000 m (~9842 ft) (to a vertical surface with ≥12m diameter and 20% reflection rate)
Measurement Accuracy	± (0.2 m + D×0.15%) D is the distance to a vertical surface

Zenmuse H30 Features

Hybrid Optical Zoom	34x
Max. Zoom	400x
One Click Capture	One click to save the video or picture of 3 cameras (zoom, wide and thermal camera) simultaneously
Point to Aim	Double click on the wide/thermal camera view, then the system will automatically move the gimbal to focus on the point of interest
High-Res Grid Photo	Frame an area of interest in wide camera view, and the zoom camera will automatically capture a set of 40 MP images of the area. These images are stored together with an overview image that can be viewed in greater detail.
Night Scene	Supported (zoom camera and wide camera)
Timestamp	Including GPS, date, and time

Storage

Supported SD Card	MicroSD card (Max capacity: 128 GB, UHS-1 Speed Grade 3 required)
Supported File Systems	FAT32 (≤ 32 GB), exFAT (> 32 GB)

In The Box

(1) H30T Gimbal & Camera
(1) Lexar Professional 1066x UHS-I microSDXC Memory Card 64GB
(1) Storage Case
(1) Lens Cleaning Cloth

Compatibility

DJI Matrice 300 RTK (with DJI RC Plus only)
DJI Matrice 350/400 RTK

Cameras

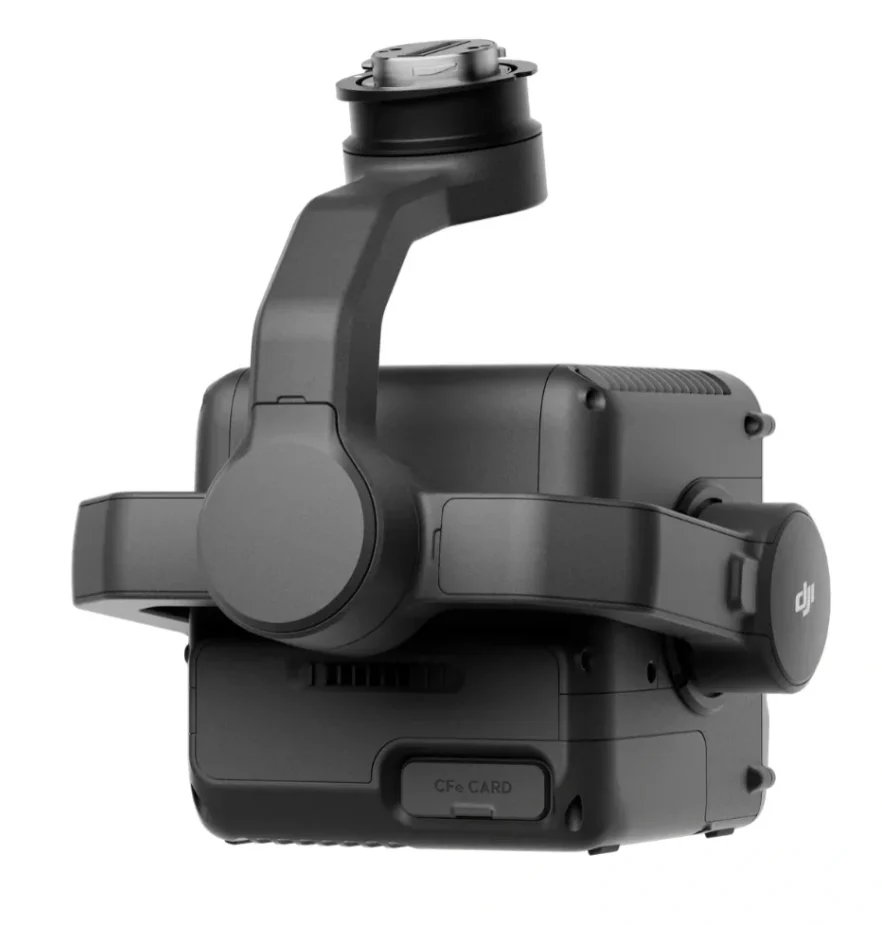

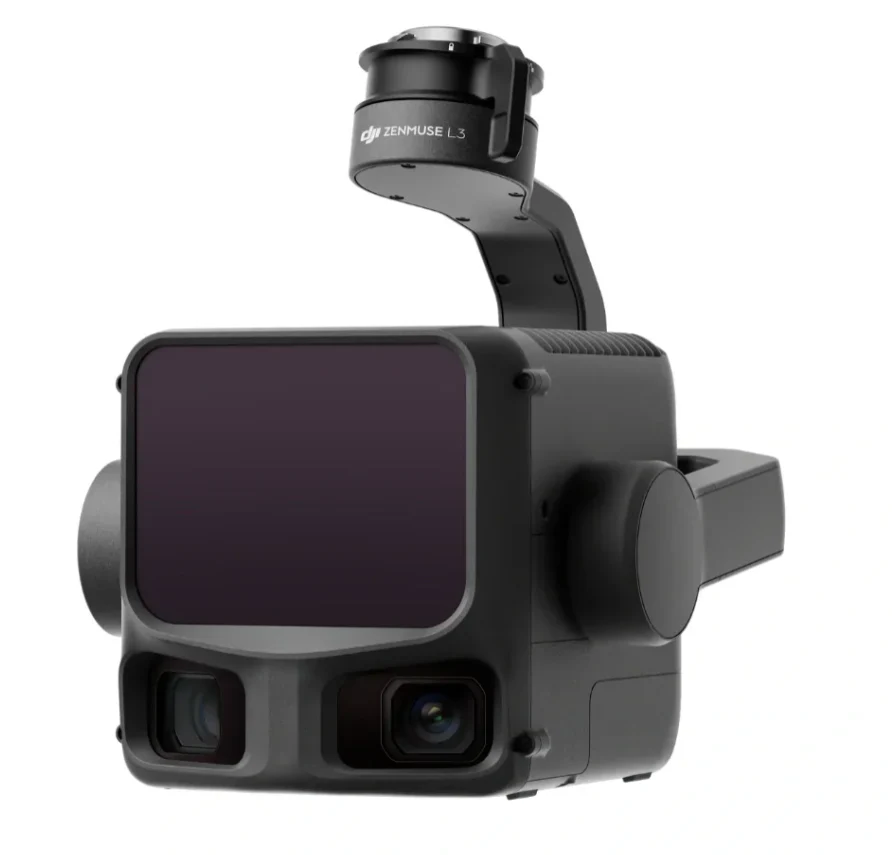

DJI Zenmuse L3 - Long Range LiDAR System Payload

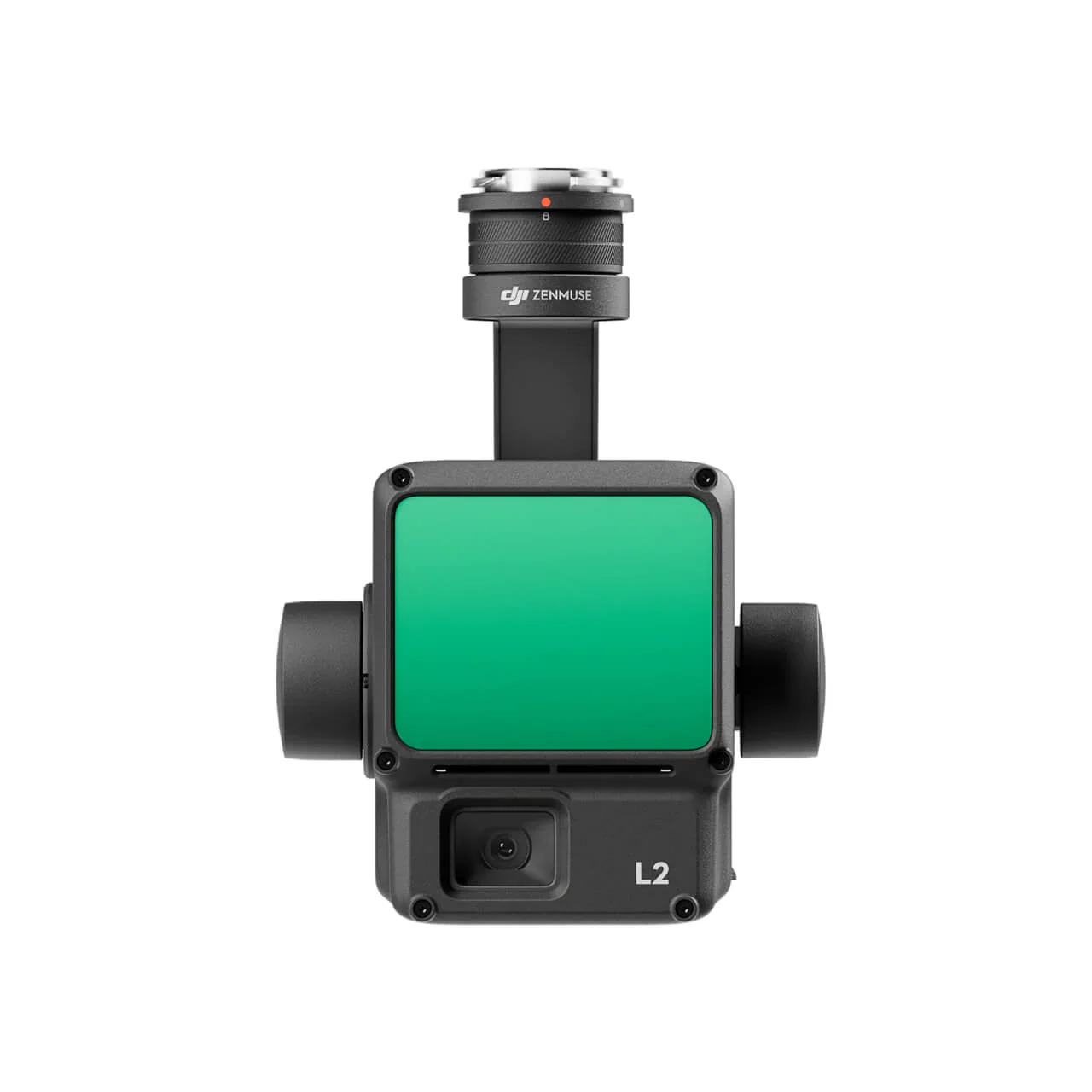

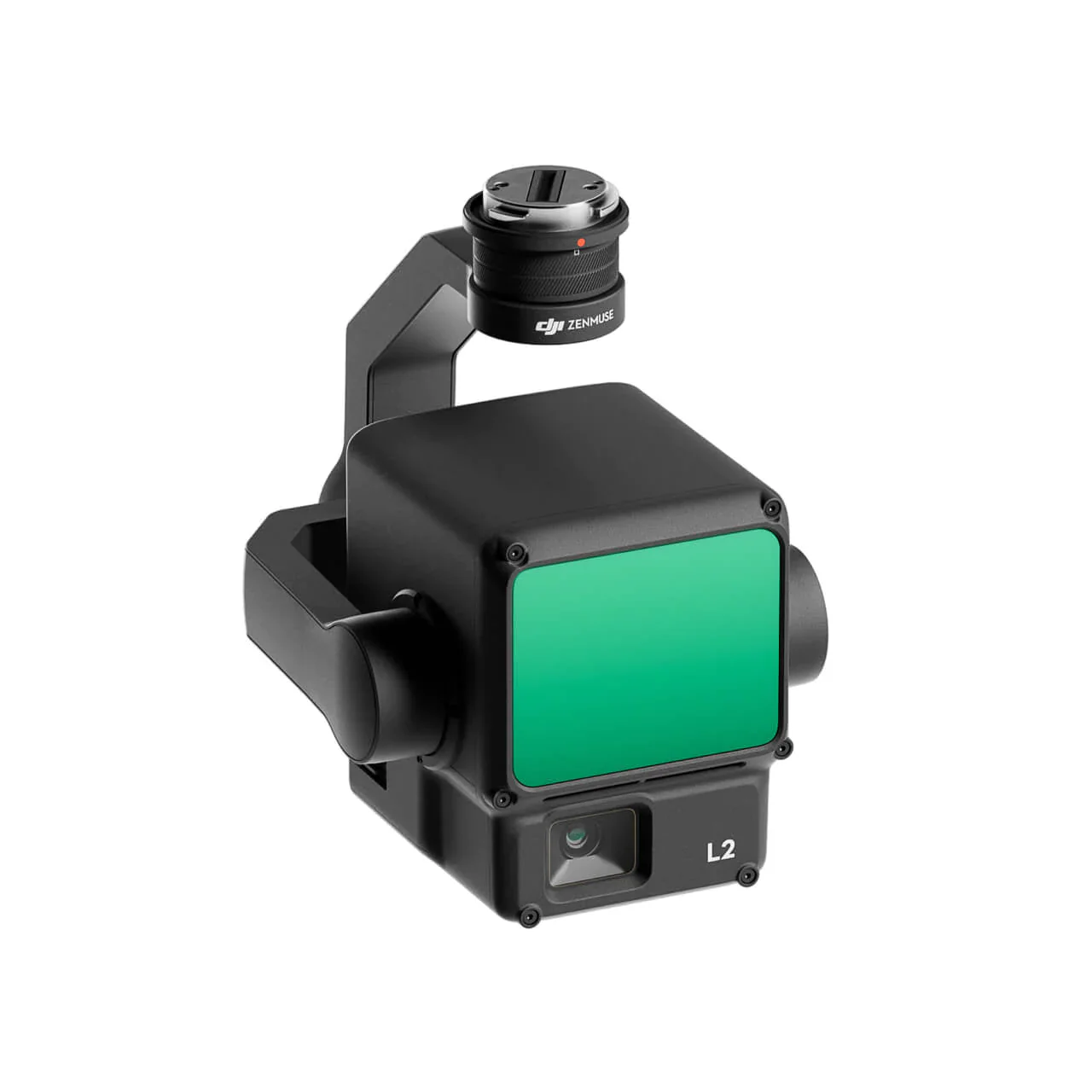

DJI Zenmuse L2 Camera | High-Precision Aerial LiDAR System

DJI ZENMUSE H30T CAMERA | FLAGSHIP ALL-WEATHER MULTI-SENSOR PAYLOAD‌ (1YR CARE BASIC)

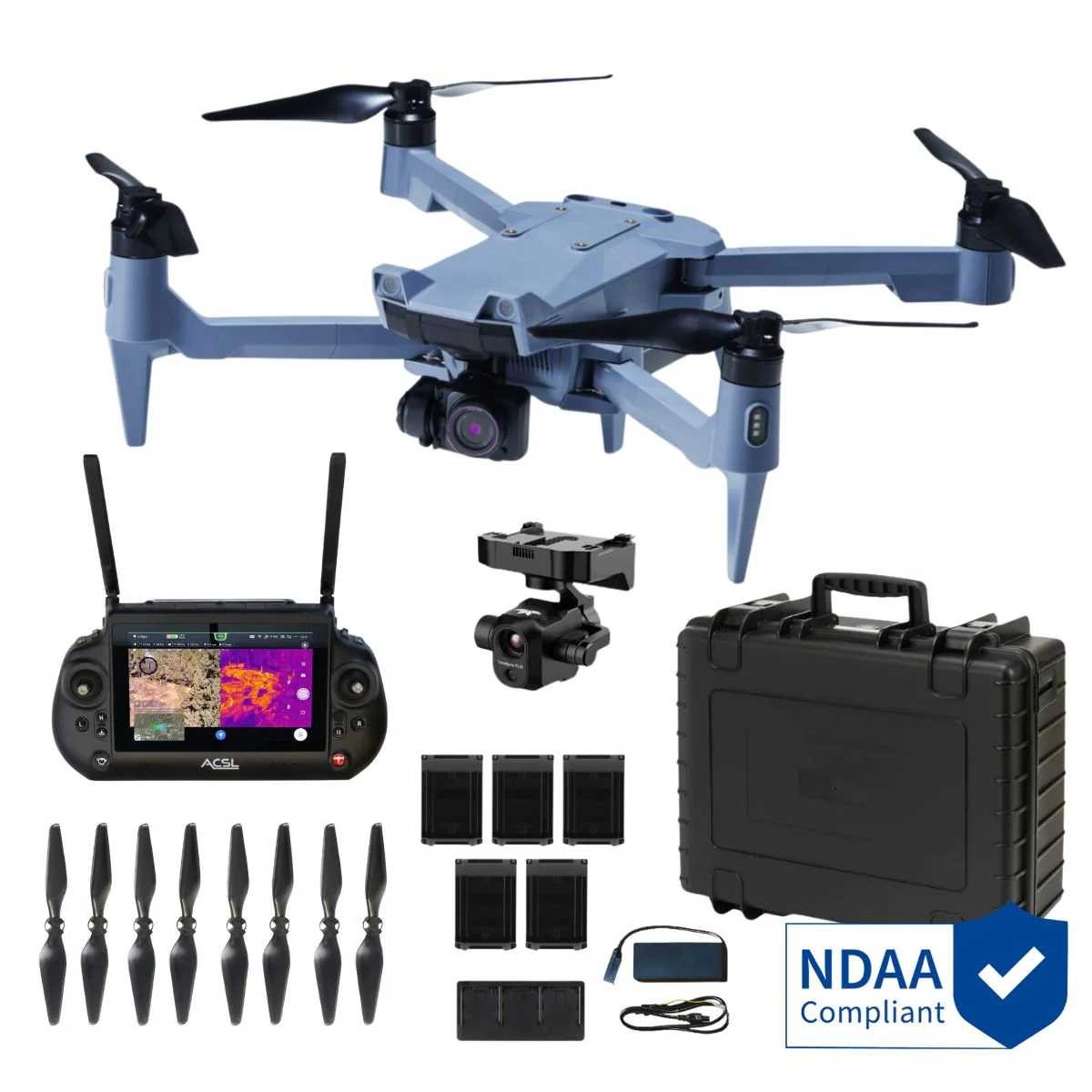

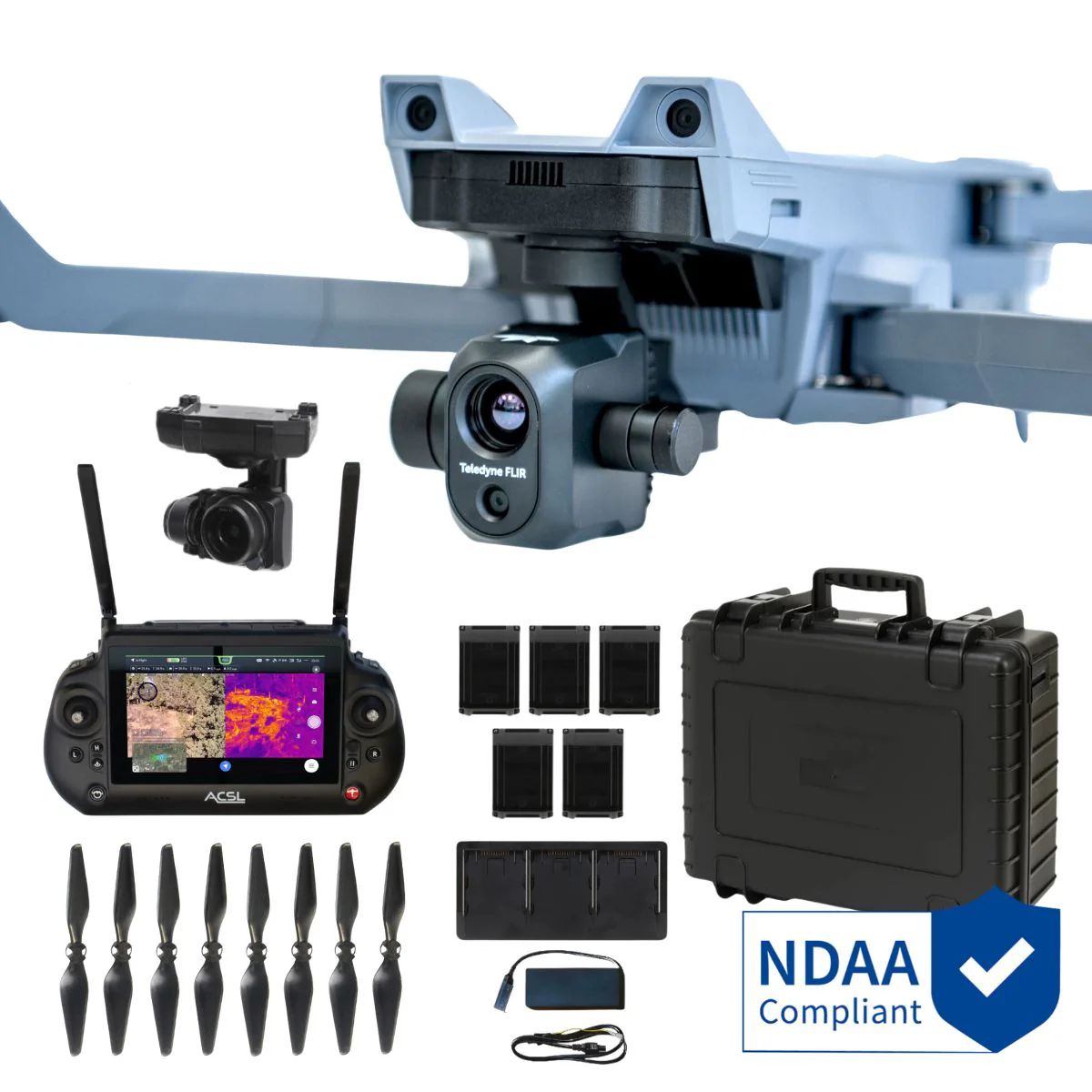

SOTEN Thermal Bundle Plus
